Topic 5.3 Notes – Protecting Stored Data with Cryptography

Protecting Stored Data with Encryption

When a file is sitting on a laptop, USB drive, or disk, anyone who gets access to that storage might be able to read it. Encryption changes the file into unreadable ciphertext unless someone also has the right key.

• Cryptography hides information.
• Encryption turns plaintext into ciphertext.
• Decryption turns ciphertext back into plaintext with the correct key.
• Algorithm means the procedure.
• Key means the secret value that controls the transformation.

The core relationship is:

• plaintext + key + encryption algorithm → ciphertext
• ciphertext + correct key + decryption algorithm → plaintext

The file example below puts that relationship into a concrete form.

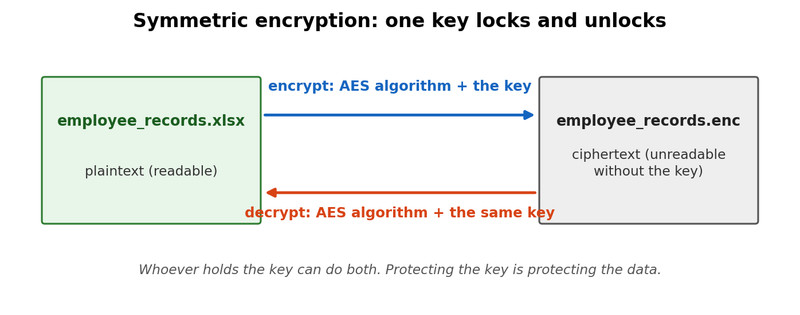

File encryption and decryption

Plaintext can be any unencrypted file, not just words on a page. It could be a spreadsheet, image, database, video, or executable.

This protects confidentiality. If someone steals an encrypted external drive, they can copy the file, but they cannot read it without the key. That matters because encryption is one layer in defense in depth along with physical security and access controls.

Encryption has limits. It does not stop someone from deleting the file, locking you out of it, or reading it if they steal both the file and the key. It also protects the file most directly while it is stored, because data usually has to be decrypted before use.

The Main Cryptography Classifications

Symmetric and asymmetric encryption

Symmetric encryption uses the same key to encrypt and decrypt. That is the main type used for file encryption in this topic.

Asymmetric encryption uses two different but related keys. You only need the basic distinction here. The detailed public/private key use belongs in the next topic.

Block and stream encryption

Block ciphers process data in fixed-size chunks called blocks.
Stream ciphers process data continuously, commonly described here as one bit at a time.

One easy trap is mixing up block size and key length. They are different things.

Keyspace and brute force

Keyspace is the total number of possible keys an algorithm can use. A larger keyspace means a brute-force attacker has more possibilities to guess through.

Still, security is never just “longer key = solved.”

• The algorithm must be strong.
• The key must be generated and stored securely.
• Users must not expose the key.
• A password may be used to derive the key instead of being the raw key itself.

That last point shows up in OpenSSL. The -k option gives a password, and the software derives the AES key from it.

AES as the File Encryption Example

AES stands for Advanced Encryption Standard. It is the most common symmetric encryption algorithm and the one you should think of first for this topic.

• AES is a symmetric-key block cipher
• It always uses 128-bit blocks, which is 16 bytes
• It supports 128-bit, 192-bit, and 256-bit keys

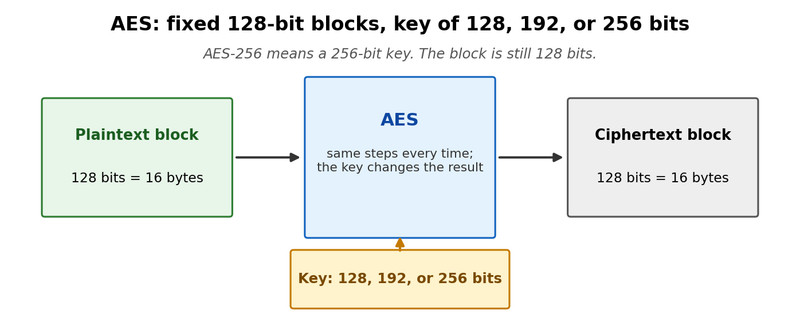

This diagram is useful for keeping the block size and key size separate in your head.

AES block size versus key size

The most tested misunderstanding here is this:

• AES-256 means a 256-bit key
• It does not mean 256-bit blocks

In the figure, the plaintext and ciphertext are both 16 bytes, and only the key length changes between AES versions.

Longer AES keys create a larger keyspace, so brute-force guessing becomes harder. They also take more time to encrypt and decrypt.

You’ll see AES used in:

• Wi-Fi security
• protections used in internet browsing
• file encryption
• full-disk encryption
• hardware-level processor encryption

Encrypting and Decrypting Files with OpenSSL

Files can be encrypted with the command line, with specialized software such as AES Crypt, or with web-based tools. OpenSSL is the command-line method you’re most likely to be tested on.

Encrypting a file

openssl enc -aes-128-cbc -e -in test -k password -out test.enc

What each part means:

• enc chooses symmetric encryption functions
• -aes-128-cbc chooses AES with a 128-bit key
• -e means encrypt
• -in test is the plaintext input file
• -k password gives the password used to derive the key
• -out test.enc writes the ciphertext output

Decrypting a file

openssl enc -aes-128-cbc -d -in test.enc -k password -out test

• -d means decrypt
• you must use the same password-derived key
• changing the password or algorithm prevents recovery of the original file

A common exam trap is forgetting that encrypting creates an encrypted copy, but the original plaintext file may still exist.

What Encryption Protects and What It Does Not

Encryption protects stored files when an attacker gets the ciphertext but not the key. That protection depends on a good algorithm like AES, a strong enough key length, and safe handling of the key and any plaintext copies.

It does not guarantee integrity, prevent deletion, or keep data secret if the key is exposed with the file.
