Topic 1.4 Notes – Reference Frames and Relative Motion

1. What a Reference Frame Is

A reference frame is a coordinate system plus a clock. It includes:

• An origin (where $x=0$)
• A set of axes (directions you call positive/negative)
• A way to measure time

When you say “the object moves at 4 m/s,” that statement is incomplete. It must be 4 m/s relative to some frame.

Frame choice changes what you measure

The same situation can give different numerical results depending on the frame:

• Position depends on where you place the origin.
• Velocity depends on how your frame moves.
• Even the direction of motion can flip.

If you’re sitting in a car moving at constant speed, a water bottle on the seat is at rest in your frame. To someone on the sidewalk, it’s moving with the car. Both are correct.

Inertial reference frames

An inertial frame moves at constant velocity (zero acceleration).

• Newton’s laws work normally in all inertial frames.
• In AP Physics C, assume the frame is inertial unless told otherwise.
• Different inertial observers can disagree on velocity, but they agree on acceleration. We’ll justify that soon.

2. Position and Velocity in Different Frames

We use subscripts carefully. This is where most mistakes happen.

• $\vec{v}_{A/B}$ means “velocity of A relative to B.”

Say that phrase in your head. It keeps the chain straight.

Position transformation

$$\vec{r}_{A} = \vec{r}_{B} + \vec{r}_{A/B}$$

Position of A (in some global frame) equals:

• Position of B
• Plus position of A relative to B

All are vectors. Directions matter.

Relative velocity equation

This is the core equation for the topic:

$$\vec{v}_{A/C} = \vec{v}_{A/B} + \vec{v}_{B/C}$$

Read it as a chain:

velocity of A relative to C
= velocity of A relative to B
+ velocity of B relative to C

The middle frame cancels, like algebra with fractions.

This is pure vector addition.

3. Adding Velocities as Vectors

1D motion

Pick a positive direction and use signs.

Example setup (no numbers):

$$v_{\text{runner/ground}} = v_{\text{runner/truck}} + v_{\text{truck/ground}}$$

If the runner moves toward the back of the truck, that velocity is negative relative to the truck.

Most common mistake on quizzes: forgetting that “toward the back” means opposite sign.

2D motion

Now velocity components matter. In two dimensions, the relative velocity equation is still just vector addition.

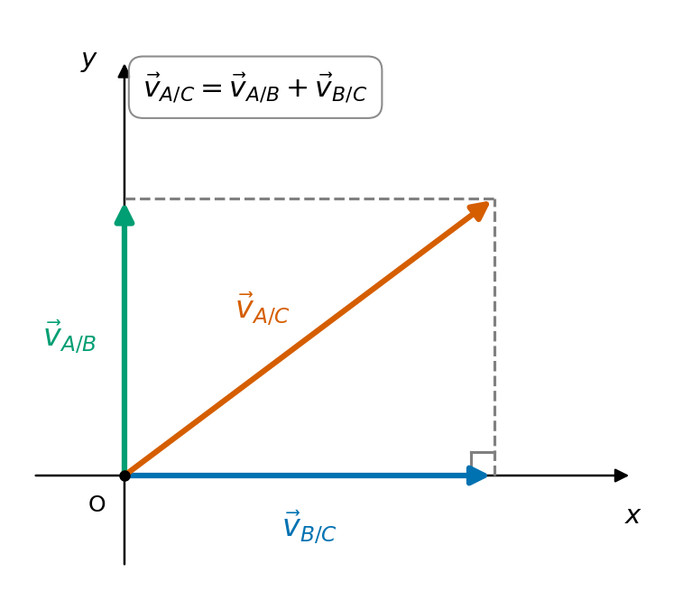

Here, $\vec{v}_{B/C}$ is horizontal, $\vec{v}_{A/B}$ is vertical, and their vector sum gives the diagonal $\vec{v}_{A/C}$. The diagonal is not a new kind of motion. It is just the result of adding components.

Component method:

1. Break each velocity into $x$ and $y$.
2. Add components:

   $$v_{x} = v_{x1} + v_{x2}$$

   $$v_{y} = v_{y1} + v_{y2}$$

3. Magnitude:

   $$v = \sqrt{v_{x}^{2} + v_{y}^{2}}$$

4. Direction:

   $$\theta = \tan^{-1}\left(\frac{v_{y}}{v_{x}}\right)$$

These show up in river-current or wind problems. The object may move straight in one frame but diagonally in another. That’s not a trick. It’s just vector addition.

On FRQs, they often expect a clear component setup before solving. Writing the chain equation first earns easy points.

4. What Changes and What Does Not Change

Frame-dependent quantities

• Position
• Displacement
• Velocity
• Direction of motion

Different inertial observers measure different values for these.

Acceleration is the same in all inertial frames

Start with the velocity transformation:

$$\vec{v}_{A/C} = \vec{v}_{A/B} + \vec{v}_{B/C}$$

If frame B moves at constant velocity relative to C, then $\vec{v}_{B/C}$ is constant.

Take the time derivative:

$$\vec{a}_{A/C} = \vec{a}_{A/B} + 0$$

So:

$$\vec{a}_{A/C} = \vec{a}_{A/B}$$

All inertial observers measure the same acceleration.

That’s why:

• Everyone measures the same gravitational acceleration.
• Newton’s Second Law works in any inertial frame.
• Mass and force are the same across inertial frames in classical mechanics.

If the frame were accelerating, this would no longer hold. Then you’d need fictitious forces, which is outside this topic’s scope.

5. Setting Up Relative Motion Problems

When you see a problem with multiple moving objects:

1. Identify the three “players” in the chain.
2. Write the velocity equation with subscripts.
3. Check that the middle frame cancels.
4. Switch to components if needed.
5. Solve.

Quick logic check during exams:

• If you move in the same direction as an object, it looks slower.
• If you move opposite, it looks faster.

If your final answer violates that intuition, recheck your signs.
